A good set of cranks is paramount to a dialed BMX set up. Strength, length, number of pieces, and spindle diameter, all play an important role in finding the right pair of cranks for you. Fortunately, here is a fairly thorough list of all the cranks on the market, thanks to Source BMX for letting us compile this all in one easy-to-absorb spot. If you like what you see hit the link to pick one up from Source BMX. They ship anywhere in the world.


GT CHROMO SERIES

The GT Chromoly crank classic is back with the same arm shape, a modern 19mm x 48 spline hollow chromoly spindle, and flush mount spindle hardware

WEIGHT: 28.9OZ
COLORS: BLACK, CHROME LENGTH: 175MM SPINDLE: 19MM PRICE: $160.00



GT CHROMO SERIES 24

The GT Chromoly crank classic is back with the same arm shape, a modern 19mm x 48 spline hollow chromoly 24MM spindle, and flush mount spindle hardware

WEIGHT: 28.35OZ
COLORS: BLACK, CHROME LENGTH: 165MM SPINDLE: 24MM PRICE: $185.99



COLONY VENATOR CRANKS Ultra-strong yet light weight utilising tailored welding techniques & specialised square tubing. Gussets on invest casted pedal bosses.

WEIGHT: 25.8OZ
COLORS:
BLACK, CHROME LENGTH: 165MM, 170mm, 175mm SPINDLE: 22MM PRICE: $200



FIT BLUNT 24 CRANKS

Strong cranks that can withstand grinds and don’t cut ankles. Complete Bottom Bracket included.

Investment cast “Blunt” spindle bosses and flush mount bolts eliminate sharp edges that cut rider’s ankles. Our concave “Indented” and swaged 100% heat-treated CrMo arms increase strength and dent resistance during grind/slides. Hollow 24mm heat-treated CrMo spindle is strong and light.

Works with all 15/16” / 24mm center bore sprockets. Sprockets that come with 19mm or 22mm hat washers are 15/16″ / 24mm with the hat washer removed.

Flush Mount bolts accept 6mm and 8mm Allen Keys.


WEIGHT: 30OZ
COLORS:
BLACK, CHROME LENGTH: 160MM, 165MM, 170mm SPINDLE: 24MM PRICE: $200



FIT OEM CRANKS
4130 CR-MO
3PC RHD/LHD Compatible – Also works with 19mm spline drive sprockets.
No Pinch Bolt Design
BB included

WEIGHT: /
COLORS:
BLACK LENGTH: 90mm, 125mm, 150mm, 160MM, 165MM, 170mm, 175mm SPINDLE: 19mm PRICE: $99



HARO LINEAGE CRANKS

The Haro Lineage Cranks are made to look like the once famous cranks we used on our complete bikes back in 87/88. Fully heat treated chromoly crank arms with a heat treated 48-splined Cr-Mo spindle.

WEIGHT: 27.4
COLORS:
BLACK, CHROME LENGTH: 170mm, 175mm SPINDLE: / PRICE: $129.00



KINK BRACE 22 CRANKS The Kink Brace cranks are a traditional 3 piece design that are highly reliable with convenient modern features. Left and right side sprocket bosses make these cranks compatible with left and right side drive, and the 22mm hollow 48 spline spindle is super strong and fits all modern sprockets. The custom spindle bolts feature both 3/8” ratchet and 6mm allen key broaches, so installation is super easy with whatever tools you have around. Oval tapered tubing gives the cranks a sleek look and a stiff feel, and the large radiuses on the spindle bosses make these cranks more ankle friendly. Fully wrapped spindle and pedal bosses paired with precision welds, make the Kink Brace cranks a pair that will last.

WEIGHT: 32.5OZ
COLORS:
BLACK, CHROME LENGTH: 165MM, 170mm SPINDLE: 22MM PRICE: $139.00



KINK PILLAR 24 CRANK

As the name implies, the Pillar 24 cranks are Kinks 24mm version of the proven Pillar cranks. In additional to a much improved strength to weight ratio, the 24mm (23.8mm) spindle means sprockets mount directly without the need of added adapters. The Pillar 24 cranks use the same exclusive single piece forged backplate found in the original Pillar cranks, that tie together the pedal and spindle bosses. Acting as an extremely stiff backbone to each crank arm, this design eliminates several weak points found in traditional tubular cranks. The Pillar 24 cranks also feature a two piece hydraulically pressed spindle to arm design, and a heat-treated hollow chromoly spindle.

WEIGHT: 28.5OZ
COLORS:
BLACK, CHROME, GOLD LENGTH: 170mm SPINDLE: 24MM PRICE: $179.00



ODYSSEY CALIBUR V2 CRANKS

Inspired by the V1 this evolution of Odyssey’s splined 3-pc crankset comes with an improvement in strength and overall design. Although they do not feature the 41-Thermal® Lifetime Warranty, the Calibur V2 are manufactured using the same standards, materials, and production quality used under the same roof as the Thunderbolt+ Cranks. Featuring post-weld heat-treated 4130 chromoly arms, a hollow 22mm 48 spline chromoly spindle and includes a sealed bottom bracket.

WEIGHT: / COLORS: BLACK LENGTH: 160MM, 165MM, 170mm, 175MM SPINDLE: 22MM PRICE: $193.00



ODYSSEY THUNDERBOLT CRANKS

The Thunderbolt + is the descendent of the Twombolt. It is still one of the most technically advanced crank designs on the market. Due to continued advancements in the legendary 41-Thermal processing and heat-treatment system, fatigue life has been increased by a massive margin.

WEIGHT: 28.16OZ COLORS: BLACK LENGTH: 165MM, 170mm, 175MM SPINDLE: 22MM PRICE: $237.00



WETHEPEOPLE LOGIC CRANKS

The Logic cranks from Wethepeople are a no nonsense super tough crank set tested by the Wethepeople team for the past year. Using super tough dent resistant square arms and a robust 3pc design, The Logic 22mm spindle keeps things strong whilst shaving off a few grams!

WEIGHT: 32.4OZ COLORS: BLACK LENGTH: 160MM, 165MM, 170mm, 175MM SPINDLE: 22MM PRICE: $160.00



WETHEPEOPLE LEGACY CRANKS

The WTP team crank uses a super tough 2 1/2 piece construction, a larger 22mm spindle and square shaped chromoly arms to maximise strength. WTP looked at areas where other branded cranks often failed and toughened up areas like the pedal boss with its own investment cast gusset, to beef things up. The legacy crank also comes in a shorter 165mm option for all you 4 peggers out there

WEIGHT: 30.75 OZ COLORS: BLACK LENGTH: 165MM, 170mm, 175MM SPINDLE: 22MM PRICE: $170.00



PROFILE RACE CRANKS

Profile have been the premiere brand for 3-piece cranks for the last 15 years or more. These cranks are hand made in the USA. The arms are made from heat treated and swagged 4130 chromoly and the spindle is a heat treated gun drilled hollow 4130, 48spine spindle.

WEIGHT: 28.5 OZ COLORS: BLACK, SPARKLE BLACK, RAW, CHROME, GOLD, WHITE LENGTH: 145MM, 160MM, 165MM, 170mm, 175MM, 180MM SPINDLE: 19MM PRICE: $160.00



PROFILE NO BOSS CRANKS

No Sprocket Boss version of Profiles race cranks for that cleaner look. for use with their Spline drive sprocket only. Profile have been the premiere brand for 3-peice cranks for the last 15 years or more. These cranks are made in the USA. The arms are made from 4130 chromoly and the spindle is a

heat treated gun drilled hollow 4130, 48spine spindle. Still the best cranks around and they now come with the flush bolt upgrade and hollow spindle as standard.


WEIGHT: 27.7 OZ COLORS: BLACK, SPARKLE BLACK, RAW, CHROME, WHITE LENGTH: 145MM, 160MM, 165MM, 170mm, 175MM, 180MM SPINDLE: 19MM PRICE: $165.00



PROFILE COLUMN 22MM CRANKS

Street BMX cranks from Profile. The Column cranks feature a brand new arm design which are beefier and stronger than the regular Profile Race cranks. These cranks also run on a new ultra hollow 22mm heat treated spindle. Hand made in the USA from the finest 4130.

NO BOSS ONLY- SPLINE DRIVE SOCKET MUST BE USED

WEIGHT: 27.7 OZ COLORS: BLACK, CHROME LENGTH:160MM, 165MM, 170mm, 175MM, 180MM SPINDLE: 22MM PRICE: $330.00



ECLAT SPIRE CRANKS

The idea behind the Spire Crank was to take the proven 2.5 piece system and combine it with a super tough, box-section arm design that will remain incredibly stiff and dent resistant. After a year of testing from Bruno Hoffmann and the rest of the Pro team, the end result is a super strong and reliable crank built to shred.

WEIGHT: 31 OZ COLORS: BLACK, CHROME, RAW LENGTH: 175MM SPINDLE: 22MM PRICE: $215

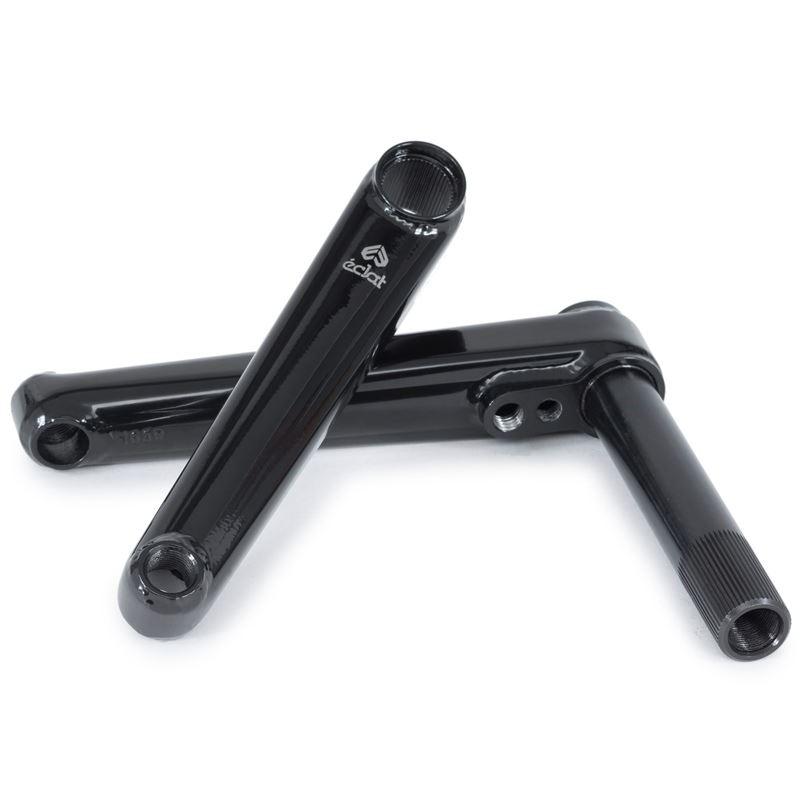

ECLAT TIBIA CRANKS

A true classic re-designed & re-released for 2019. The Tibia cranks from Eclat offer the function and simplicity of a two-piece design, but stay true to the proven splined design of three-piece cranks. The Tibia cranks feature a slim arm design, constructed of 4130 crmo arms and spindle. The Tibia cranks have had a slight refresh for their 10 year anniversary with an updated arm shape & logo. A Super strong & rigid set of cranks that are going to keep you safe on the streets.

WEIGHT: 32.95 OZ COLORS: BLACK LENGTH: 160mm, 165mm, 170mm, 175MM SPINDLE: 22MM PRICE: $160



SNAFU MAYWEATHER CRANKS

1.4mm wall straight-gauge 4130 chromoly arms with concentric taper One-pieced forged and broached spindle boss with two tuck pin holes Drilled and machined 9/16-inch pedal boss with TIG-welded gusset Left-hand and right-hand drive compatible Hollow heat-treated 4130 chromoly 48-spline spindle Grade-8 center bolts and tuck pin hardware Works with Spanish, Mid, Euro bottom brackets

WEIGHT: 13.5OZ SPINDLE: / SIZE:160MM,170MM, 175MM
COLORS: BLACK, RED, PURPLE, CHROME
PRICE: $63.99



CULT HAWK CRANKS V2

Chase Hawk signature cranks from Cult. The Hawk 22mm cranks are fully heat-treated and feature 4130 chromoly crank arms made with custom forged tubing, investment cast oversize spindle bosses, and a wraparound spindle gusset for increased strength and rigidity. A 22mm hollow chromoly spindle and hollow chromoly spindle bolts helps shed weight without sacrificing strength. Regular / Nano drive compatible. RHD/LHD compatible.

WEIGHT: 30 OZ SPINDLE: 22MM SIZE: 165MM,170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $210



CULT CREW CRANKS

The Cult Crew cranks feature a wrap around gusset design. 3-pc tubular design with heat-treated swaged chromoly arms, 1-pc spindle sprocket boss, 19mm hollow chromoly spindle with 48 splines and a single flush mount hollow spindle bolt. RHD or LHD compatible.

WEIGHT: 30 OZ SPINDLE: 19MM SIZE: 165MM,170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $175



ANIMAL AKIMBO CRANKS

The New Akimbo cranks from Animal feature a strong but not over-built design made entirely from heat treated 4130. The Akimbo BMX cranks have a smooth arm tubular arm design to prevent ankle bashing and use a hollow heat treated 22mm, 48spline spindle. Left or Right hand compatible and come complete with crank installation tool.

WEIGHT: 33 OZ SPINDLE: 22MM SIZE: 160MM, 165MM,170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $190



DEMOLITION REVOLT CRANKS

Demolitions Revolt cranks were proven and tested by there whole team for a whole year before they were released. They have added a new heat treatment process, thicker tubing and made them with a stiffer shape. All for those that need the security of a stress-free crank. The Demolition crew stands by them and swear they are the strongest cranks they have ridden.

WEIGHT: 32 OZ SPINDLE: 19MM SIZE: 165MM,170MM, 175MM
COLORS: BLACK, CHROME, BLACK JACKET
PRICE: $170



DEMOLTION RIG CRANKS

Dennis Enarson Signature crank from Demolition, With a 24mm 48t chromoly splined spindle and Heat treated Chromoly arms. These are super tough crankset that Dennis himself swears by so you know they are going take whatever you throw at them.

WEIGHT: 31 OZ SPINDLE: 24MM SIZE: 165MM,170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $160



FEDERAL VICE 2 24MM CRANKS

The Federal Vice crank features a unique radius box section combined with a 24mm hollow 48 splined spindle to make these some of the strongest and stiffest bmx cranks on the market. The spindle and arms are both made from heat treated 4130 Chromoly and the spindle has been internally machined to reduce weight. The cranks are designed to take all the abuse of the modern street rider and the angular shape of the arms helps to make crank slides more stable. The braised logo gives the cranks a unique and distinct appearance.

WEIGHT: 32.9 OZ SPINDLE: 24MM SIZE: 160MM, 165MM,170MM, 175MM
COLORS: BLACK, CHROME, BLUE
PRICE: $180

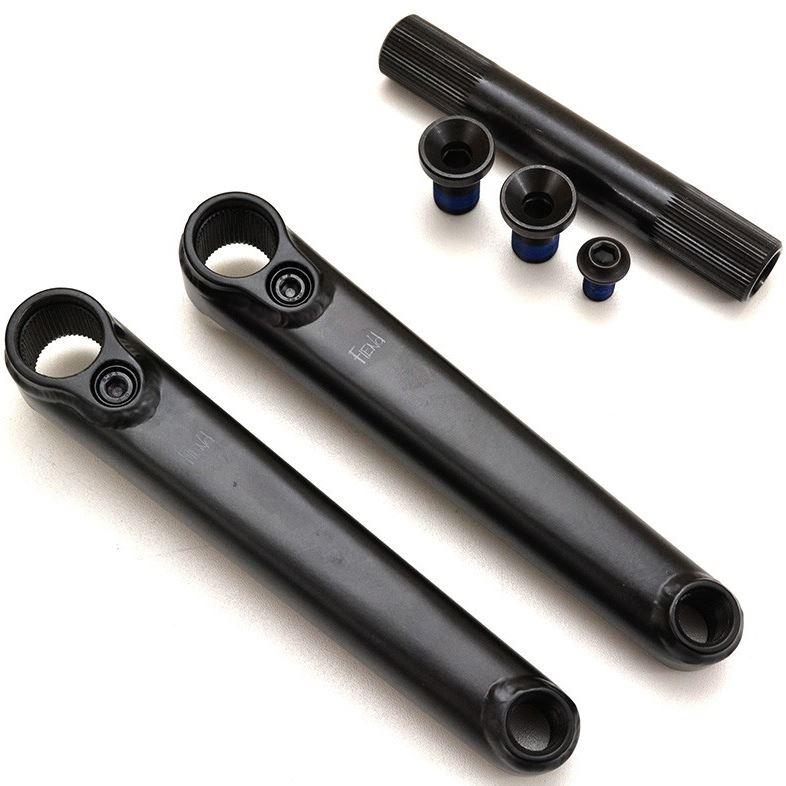

FIEND SEGMENT CRANKS

The Segment crank utilises the traditional 3pc crank design. The rectangular heat-treated chromoly arms feature a proprietary internal wedge system for easier installation and removal. The hollow 48 spline 22mm heat-treated chromoly spindle reduces weight while maintaining maximum strength. Left and right hand bolt or spline drive compatible

WEIGHT: 32.9 OZ SPINDLE: 22MM SIZE: 160MM, 165MM,170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $180



FIEND TEAM 2.5 PIECE

2.5pc design featuring a proprietary internal wedge system in each arm to ease installation and removal, rectangular shaped heat-treated chromoly crank arms with 1pc spindle/sprocket bosses and a 48 spline 22mm hollow chromoly spindle with a single hollow flush mount spindle bolt. Right or left hand drive compatible.

WEIGHT: 34 OZ SPINDLE: 22MM SIZE: 160MM, 165MM,170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $170

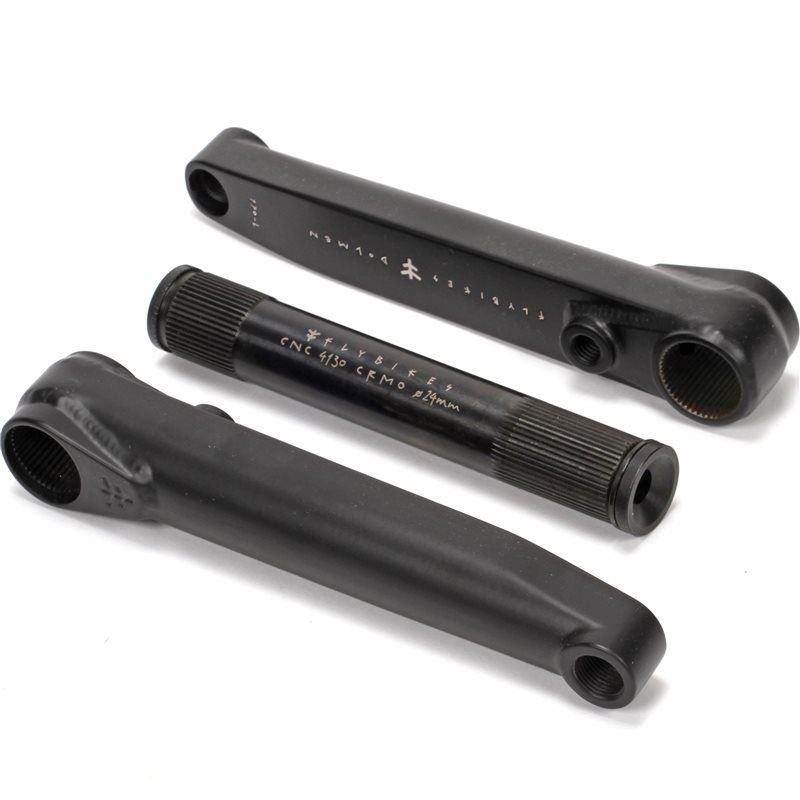

FLY DOLMEN 2 24MM CRANKS

You’re not going to find a better test pilot than Larry Edgar, you’re just not ! The guy pushes every bike part to the limit, so when Fly created a set of cranks that could hold up to him, they knew they were on to something. Not sacrificing strength for weight, the Dolmen II cranks, are a fully Heat-treated 4130 Chromoly 1 piece invest cast with a bend resistant D-shaped arm design that includes a 2.5 piece spindle, Invest cast spindle boss, CNC machined spindle bolt with recessed allen head hex, and come in both 22 mm and 24 mm spindle size options. And honestly, if they’re good enough for Larry, its safe to say they’re probably good enough for you!

WEIGHT: 30 OZ SPINDLE: 22MM SIZE: 165MM,170MM, 175MM
COLORS: BLACK
PRICE: $200



FLY DOLMEN 22MM CRANKS

You’re not going to find a better test pilot than Larry Edgar, you’re just not ! The guy pushes every bike part to the limit, so when Fly created a set of cranks that could hold up to him, they knew they were on to something. Not sacrificing strength for weight, the Dolmen II cranks, are a fully Heat-treated 4130 Chromoly 1 piece invest cast with a bend resistant D-shaped arm design that includes a 2.5 piece spindle, Invest cast spindle boss, CNC machined spindle bolt with recessed allen head hex, and come in both 22 mm and 24 mm spindle size options. And honestly, if they’re good enough for Larry, its safe to say they’re probably good enough for you!

WEIGHT: 30 OZ SPINDLE: 22MM SIZE: 165MM,170MM, 175MM
COLORS: BLACK
PRICE: $200



JET BMX PRO CRANKS

The perfect set of cranks for those looking to upgrade or replace their cranks on their ride without breaking the bank. Designed for run both standard Right-hand drive or left-Hand drive and supplied with a sealed bearing Mid BB to fit all modern BMX freestyle bikes.

WEIGHT: 33 OZ SPINDLE: 19MM SIZE: 170MM
COLORS: BLACK
PRICE: $70



MISSION TRANSIT V2

The Transit V2 cranks are tubular chromoly 3 piece cranks with a super strong cold forged 19mm spindle. They’re right and left hand drive compatible and come in various lengths and colors!


WEIGHT: 38 OZ SPINDLE: 19MM SIZE: 160MM, 165MM, 170MM, 175MM,
COLORS: BLACK, BLUE, RED WHITE, PURPLE, CHROME
PRICE: $75



PRIMO STEVIE 24MM CRANKS

Stevie Churchills signature cranks from Primo. The Primo Stevie cranks feature custom formed heat-treated chromoly arms and hollow 24mm heat treated 48spline spindle with hollow chromoly spindle bolts to help save weight without loose strength.
WEIGHT: / OZ SPINDLE: 24MM SIZE: 175MM
COLORS: BLACK, RAW, CHROME
PRICE: $180



RADIO DESTRO LIGHT CRANKS

The Destro Light Crank uses a special welding system and invest cast design which allows over 200g the be shaven off the whole crank whilst keeping them incredibly strong. 22mm ultra hollow spindle and oversized arms, these insanely strong cranks are also some of the lightest on the market.

WEIGHT: 28.6OZ SPINDLE: 22MM SIZE: 165MM, 175MM
COLORS: BLACK,
PRICE: $200

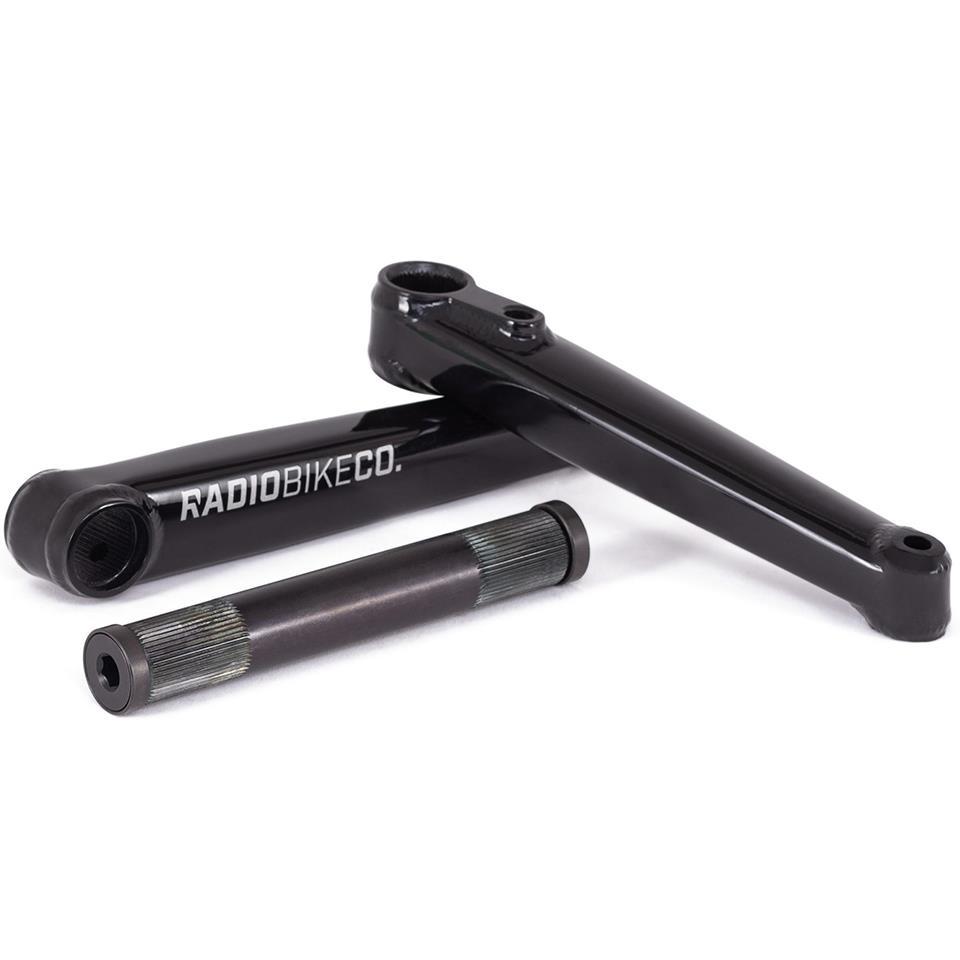

RADIO DESTRO CRANKS

Radio worked hard for over a year trying to develop the toughest BMX cranks possible and couldn’t be more stoked on the result. Machine and rider tested, The Destro cranks are insanely strong, without excessive weight. These bad boys come with a 2mm sealed mid bottom bracket allowing you to bolt them on and get shredding as soon as possible. The larger 22mm spindle keeps these things stiff, while the heat treated arms mean you won’t be bending these things anytime soon.


WEIGHT: 33OZ SPINDLE: 22MM SIZE: 165MM, 175MM
COLORS: BLACK,
PRICE: $160

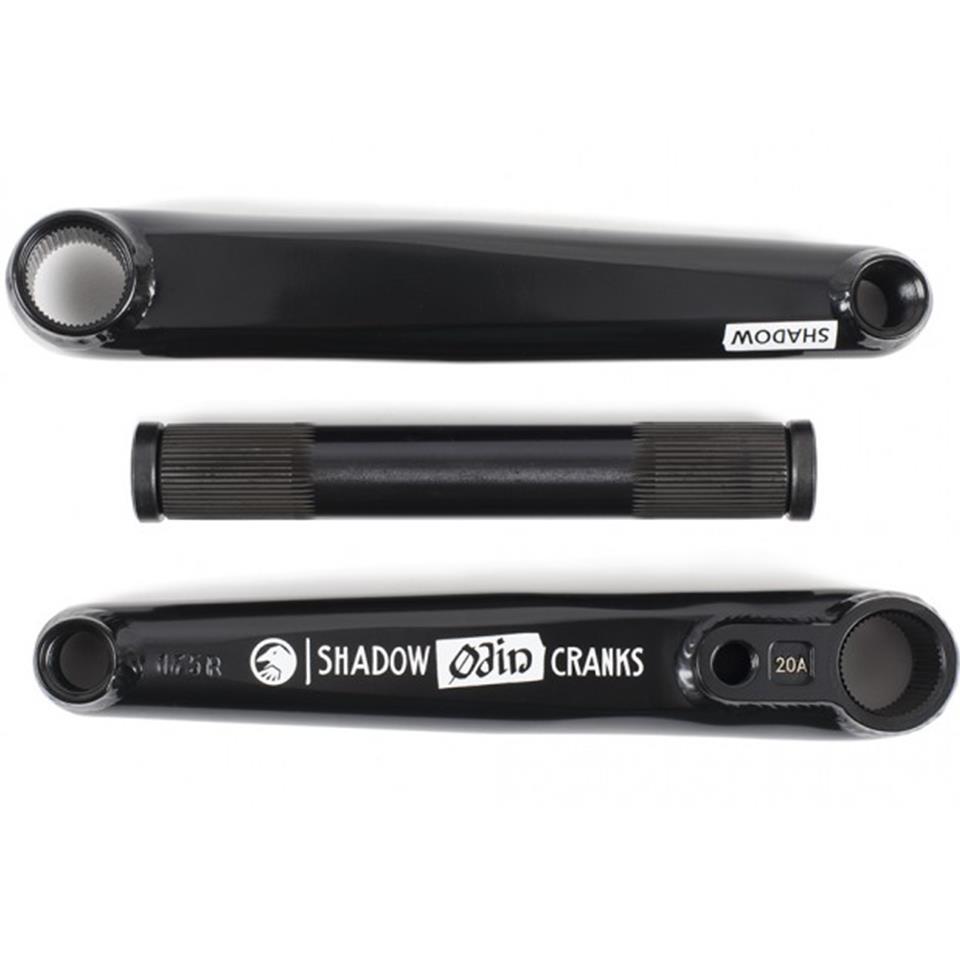

SHADOW ODIN CRANKS

Introducing the Mark Burnett signature Shadow Odin Cranks. Built with a proprietary shape, the Odin Cranks are strong, stiff and slim. Designed with flat sides to be ankle friendly, while the rounded top is ideal for crank slides. Minimal crank offset to keep your feet more centered for better control. LHD and RHD compatible. A strong and aesthetically pleasing crank arm.

WEIGHT: / SPINDLE: 22MM SIZE: 160MM, 165MM, 170MM, 175MM
COLORS: BLACK, CHROME
PRICE: $230




STRANGER MASS VS 22MM CRANKS

The Mass V2 Crank features an updated 2pc version of the original mass crank with a custom molded logo cap. Primo BB included.

WEIGHT: / SPINDLE: 22MM SIZE: 175MM
COLORS: BLACK,
PRICE: $180

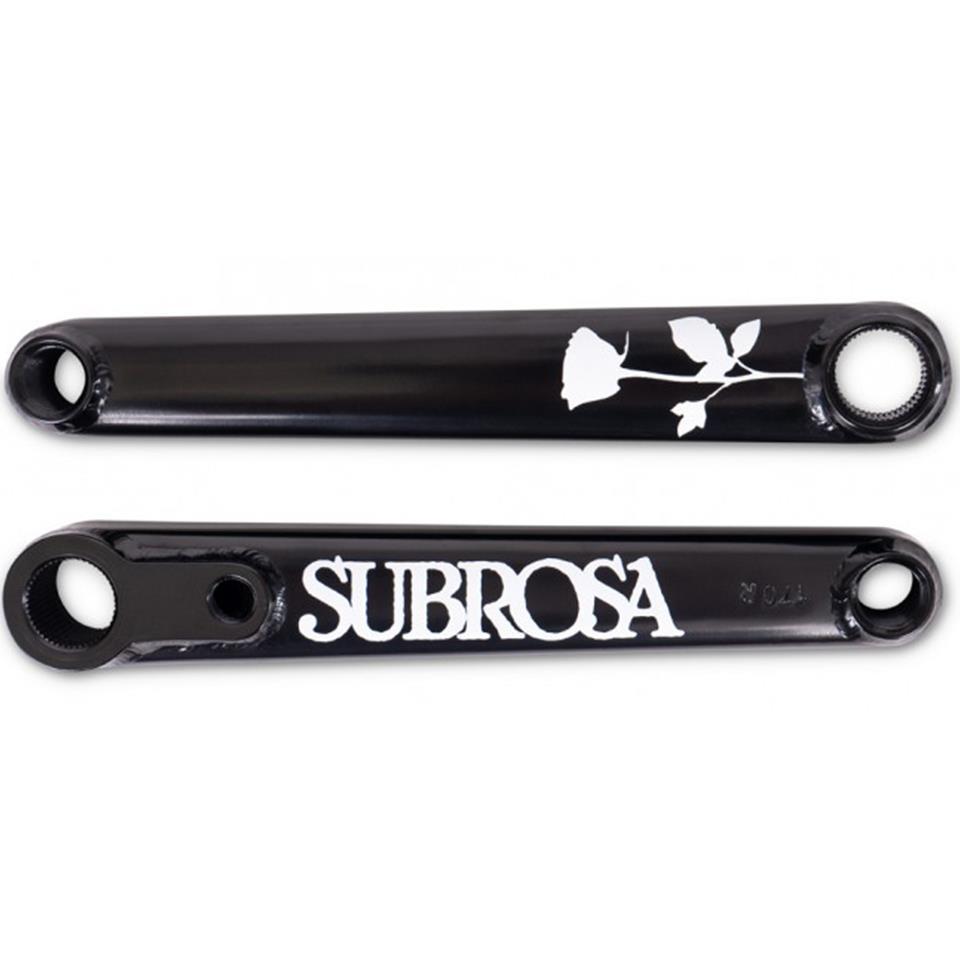

SUBROSA ROSE CRANKS

Introducing the Subrosa Rose Cranks. Post Weld Heat treated chromoly, with CNC’d spindle bosses, all held together with oversized welds. Slim design with a 19mm spindle to keep it simple with 6mm allen bolts. BB is included!

WEIGHT: 38.5 WITH BB SPINDLE: 19MM SIZE: 160MM, 165MM, 170MM, 175MM
COLORS: BLACK
PRICE: $200



UNITED SUPREME V3 CRANKS

United Supreme v3 3pc cranks. 100% heat treated seamless 4130 chromoly arms with custom stamped United logo detailing, and a new 22mm hollow spindle.

WEIGHT: 34.5 WITH BB SPINDLE: 22MM SIZE: 165MM, 175MM
COLORS: BLACK, CHROME, TRANS FLAT BROWN
PRICE: $115
